Architecture of the tangram framework¶

The tangram framework consists of a suite of independent components that can be combined to create a powerful and flexible aviation data processing and visualization system.

The system consists of a web-based frontend (in Javascript based on Vite), a backend service (in Python , and Rust when performance is key).

Communication between the frontend and backend is done through a REST API, while real-time data streaming is handled via WebSockets. The backend service aggregates data from multiple sources, processes it, and exposes it for visualization in the frontend.

A Redis pub/sub system is used for efficient data distribution between backend components.

Overview of the technologies used¶

It is not necessary to know all the technologies used in the tangram framework to use it effectively, and to implement your own plugins. However, it is useful to understand the architecture and how the components interact with each other.

Component	Technology
Frontend	JavaScript (Vue.js, Vite)
Backend	Python for most applications (FastAPI for the REST API)
	Rust for performance critical components
Data communication	Redis (pub/sub messaging system)

Processes on the backend side communicate with each other using a pub/sub mechanism provided by Redis. The frontend communicates with the backend service through a REST API for simple requests and a WebSocket connection for real-time data streaming.

System overview¶

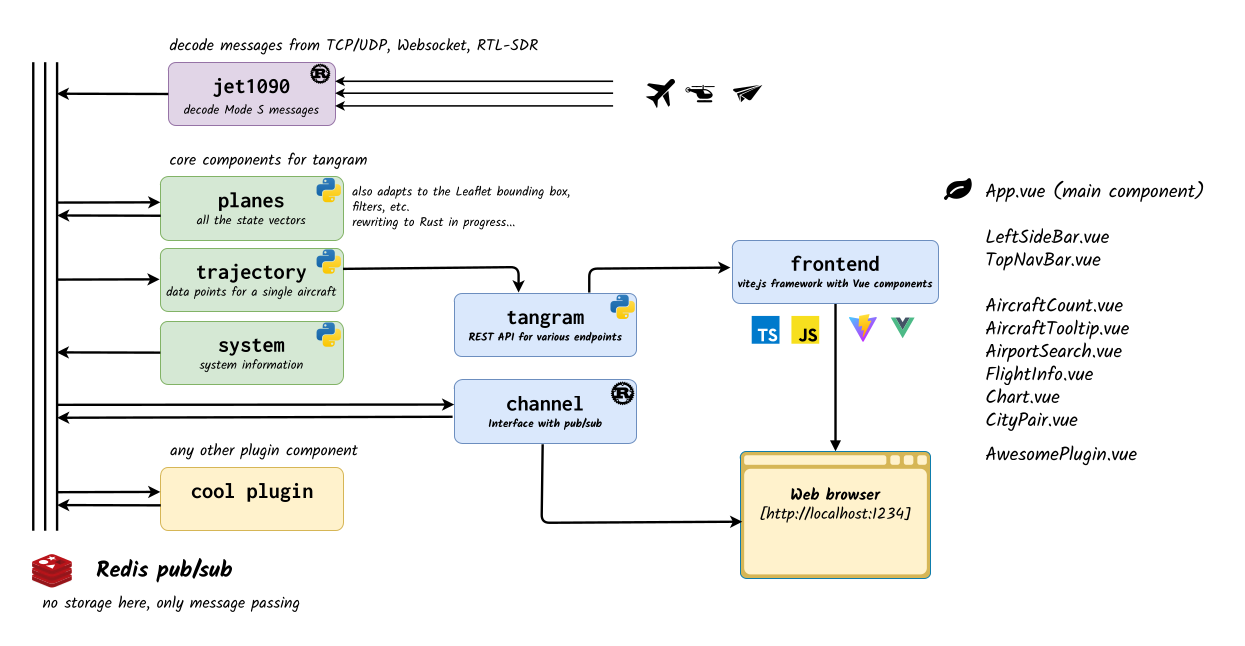

tangram architecture

Backend component	Description
`jet1090`	decode Mode S and ADS-B messages
`planes`	maintain a state vector table of aircraft
`trajectory`	get the history of data for a given aircraft
`tangram`	REST API for data retrieval and management
`channel`	WebSocket connection for real-time updates

Backend components¶

jet1090¶

Documentation: https://mode-s.org/jet1090

jet1090 is a Rust-based ADS-B decoder that can be used to decode ADS-B messages from a variety of sources, including software-defined radio devices and network streams such as those provided by commercial ADS-B receivers. It is designed to be fast and efficient, making it suitable for real-time applications.

planes¶

Documentation: planes

planes is a Python-based component that maintains a state vector table of aircraft. It is responsible for tracking the position and other parameters of aircraft in real-time. The component uses the data provided by jet1090 to update the state vector table and provide real-time information about the aircraft.

A state vector table is a data structure that contains the latest information about all the parameters of the aircraft. This is necessary because all ADS-B messages do not provide all the parameters of the aircraft at once. In particular the position, the speed, the track angle and the identification all come in different messages. Having the most recent information along all the possible features is usually enough to display the aircraft on a map.

trajectory¶

Documentation: trajectory

trajectory is a Python-based component that provides a history of data for a given aircraft. It is responsible for storing and retrieving historical data about the aircraft's position and other parameters. The component uses the data stored by the Redis system and reformat it to be used by the frontend in a more standard JSON-like format. This is useful to be able to display the trajectory of an aircraft on a map, as well as to provide historical data for plotting, e.g. altitude, speed, vertical rate, etc.

tangram REST API¶

Documentation: available when you run the service at http://localhost:2345/tangram/docs

The tangram component is a Python-based REST API that provides data retrieval and management capabilities. It is responsible for handling requests from the frontend and providing the necessary data for visualization and analysis. The API is designed to be modular and extensible, allowing researchers to add their own endpoints and functionality as needed.

Basic endpoints provided by the API include the data from trajectory and planes. Other endpoints are provided to facilitate the use of other data such as meteorological data through fastmeteo (https://github.com/open-aviation/fastmeteo). Since the component is based on FastAPI, it also possible to dynamically add new endpoints to the API at the plugin level. This allows researchers to create their own endpoints for specific research needs, such as custom data processing or analysis.

channel¶

Documentation: channel

The channel (https://github.com/emctoo/channel) component is a Rust-based WebSocket connection that makes the bridge between the frontend and the Redis pub/sub system. It is responsible for providing real-time updates from and to the frontend.

For instance, state vectors updates from the planes component are sent on the Redis pub/sub and the channel tool listens to the channel before sending the data to the frontend through a WebSocket. Conversely, the bounding box of the map is sent from the frontend to the channel component, which then sends it on the Redis pub/sub system. For example, the planes component listens to this channel and updates the state vector table accordingly.

Frontend architecture¶

The frontend is based on Vue.js and provides a dynamic, real-time visualization interface for aviation data. It is designed to be modular, allowing users to implement their own plugins for data visualization and analysis.

The entry point is the App.vue file, which initializes the application and sets up the main component. At this point, the webpage is divided into:

a main content area in the center, which displays the map with the visible aircraft;
a navigation bar at the top, described in components/TopNavBar.vue;
a sidebar on the left, described in components/LeftSideBar.vue, which pops up when the user clicks on an aircraft on the map.

Most other components (located in the components/ directory) are referred to from the main App.vue file or from other components.

Extensions of the web application are described in the Plugins section.

Containers and process management¶

By default, most components run within a single container managed by process-compose. The tool handles process startup and shutdown; manages dependencies between processes; provides process monitoring and logging. This architecture is defined in container/process-compose.yaml and can be extended to include additional services.

The description of the tangram container is defined in container/tangram.Containerfile.

The two components which are not running in the tangram container are the services that are the most natural to run on a different node:

the Redis service, which runs in its own default container;
the jet1090 component, which also runs in its own container to allow for easier updates.

Tip

If you want to use jet1090 with a RTL-SDR dongle, it could be easier to configure it outside of the container as it requires access to the USB device.
