Quickstart Guide for tangram

How to quickly set up and run tangram with basic visualizations of aviation data

Warning

The framework has only been tested on Linux and macOS.

It may not work on Windows without additional configuration, but contributions to improve Windows compatibility are welcome!

Prerequisites

Before you begin, ensure you have the following tools installed:

  1. just is a command runner, similar to make, that simplifies running commands in your project.

  2. podman is a container engine for developing, managing, and running containers, similar to Docker.

Tip

You can have a running tangram instance in less than 5 minutes with these tools.

It will also be possible to run some of the components outside of containers, but for the quickstart, we use containers to simplify the setup.

1. Environment Configuration

Create an environment file from the template:

cp .env.example .env

The file contains default configurations for a basic demo setup. You can modify it later to suit your needs.

2. Build Containers

Build the tangram container:

just create-tangram

3. Launch Redis

Start a Redis container for message passing and caching between different services:

just redis

This command will pull the Redis image if not already available and start the container.

Note

The redis container will keep running in the background, allowing other services to connect to it.

You can check if Redis is running with:

podman container ls

You can stop the container with:

podman container stop redis

4. Run the data receiver

Set up the data source parameters and run the jet1090 container:

just jet1090

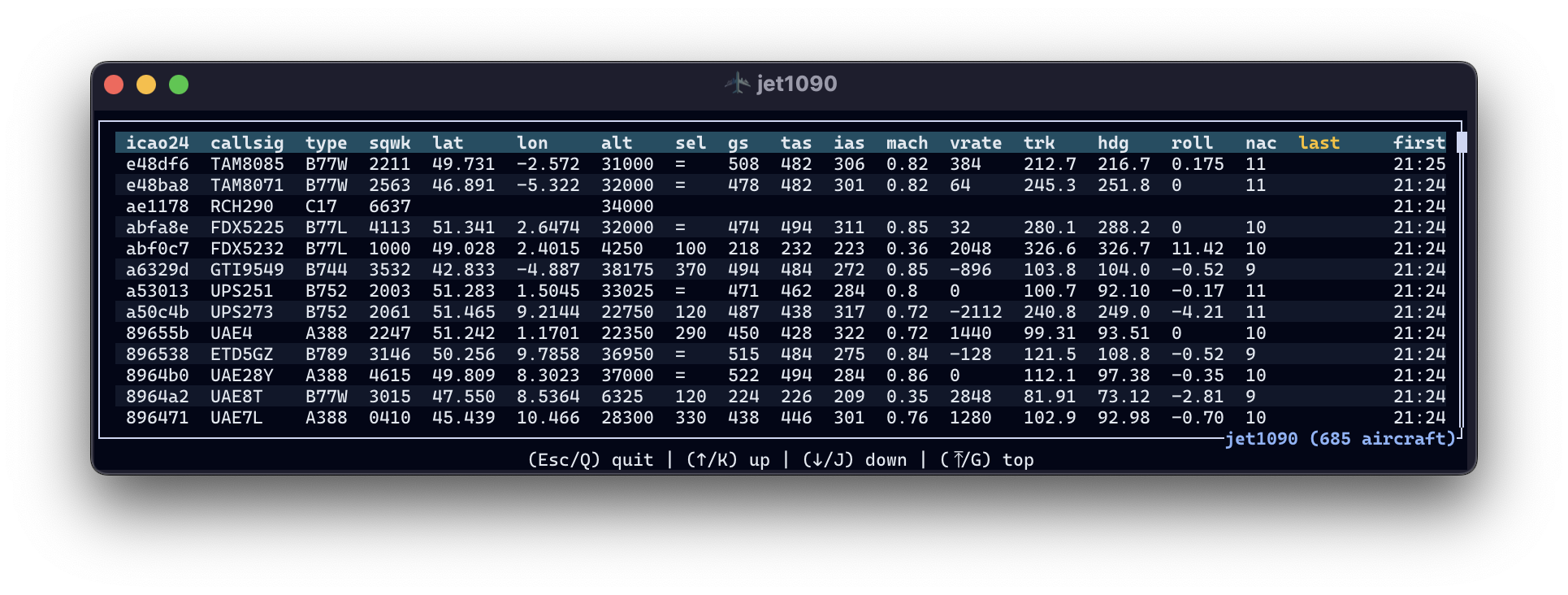

You should now see the jet1090 console displaying data received from the source:

jet1090 console

Note

The jet1090 executable can also be easily installed directly on your system if you prefer not to use a container. Check the jet1090 documentation for installation instructions. However, the default configuration works with a containerized version for simplicity.

Note that it is mandatory to run jet1090 locally if you want to feed data from a RTL-SDR device, as the containerized version may not have access to your local hardware: it can be parameterized for Linux (a bit complicated), but it is not possible for Apple computers due to limitations in the kernel implementation.

In that case, you need to edit some parameters in the .env file:

  • REDIS_URL becomes http://host.containers.internal:6379 (which will work thanks to port redirection explicited in the justfile)
  • JET1090_URL becomes http://host.containers.internal:8080.

5. Launch tangram

In a new terminal, run the tangram container:

just tangram

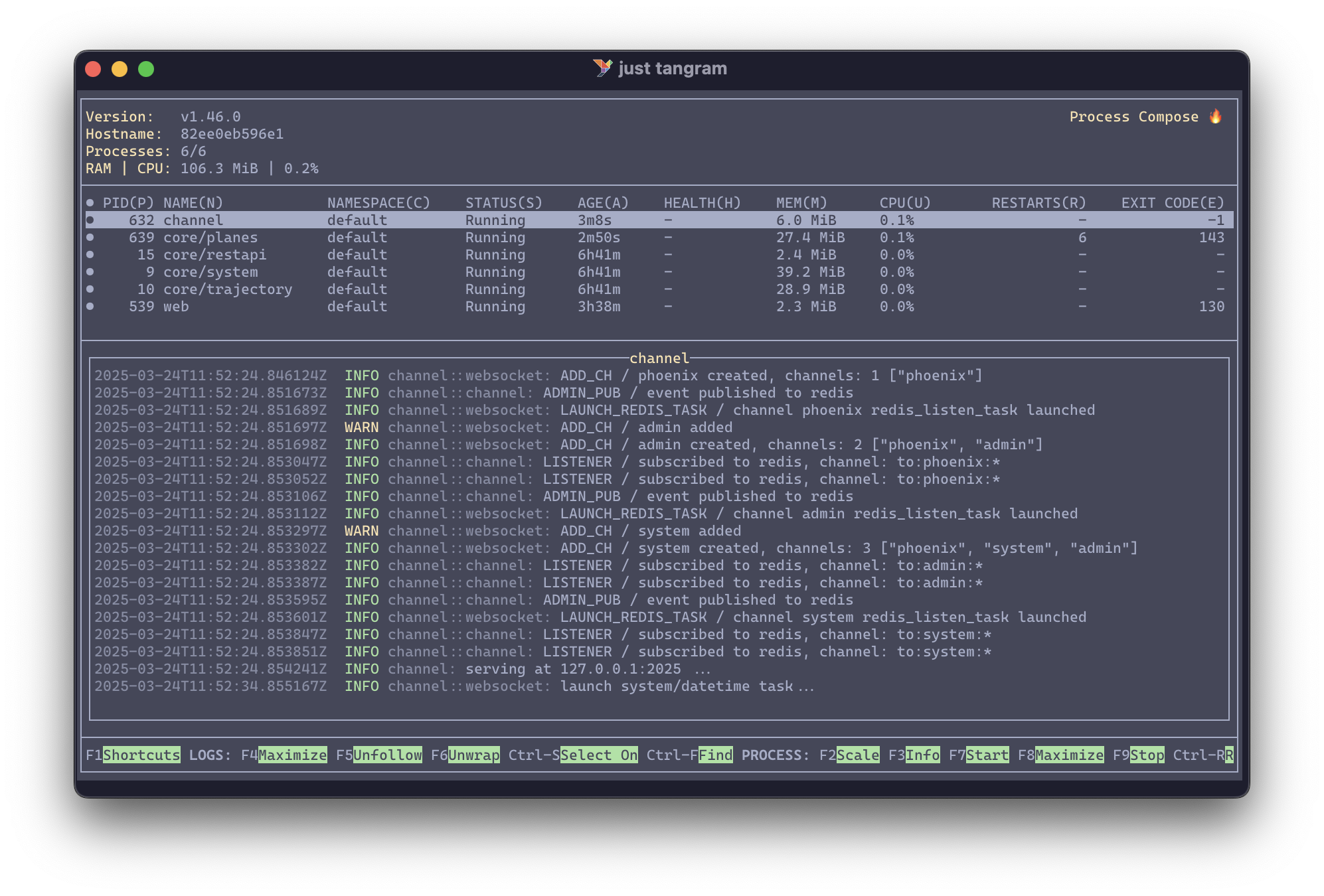

The container is orchestrated using process_compose, which manages the various background processes required for tangram to function.

process composer

You may click on each process to see its logs in real-time. The web process is the web server that serves the tangram interface.

6. Access the web interface

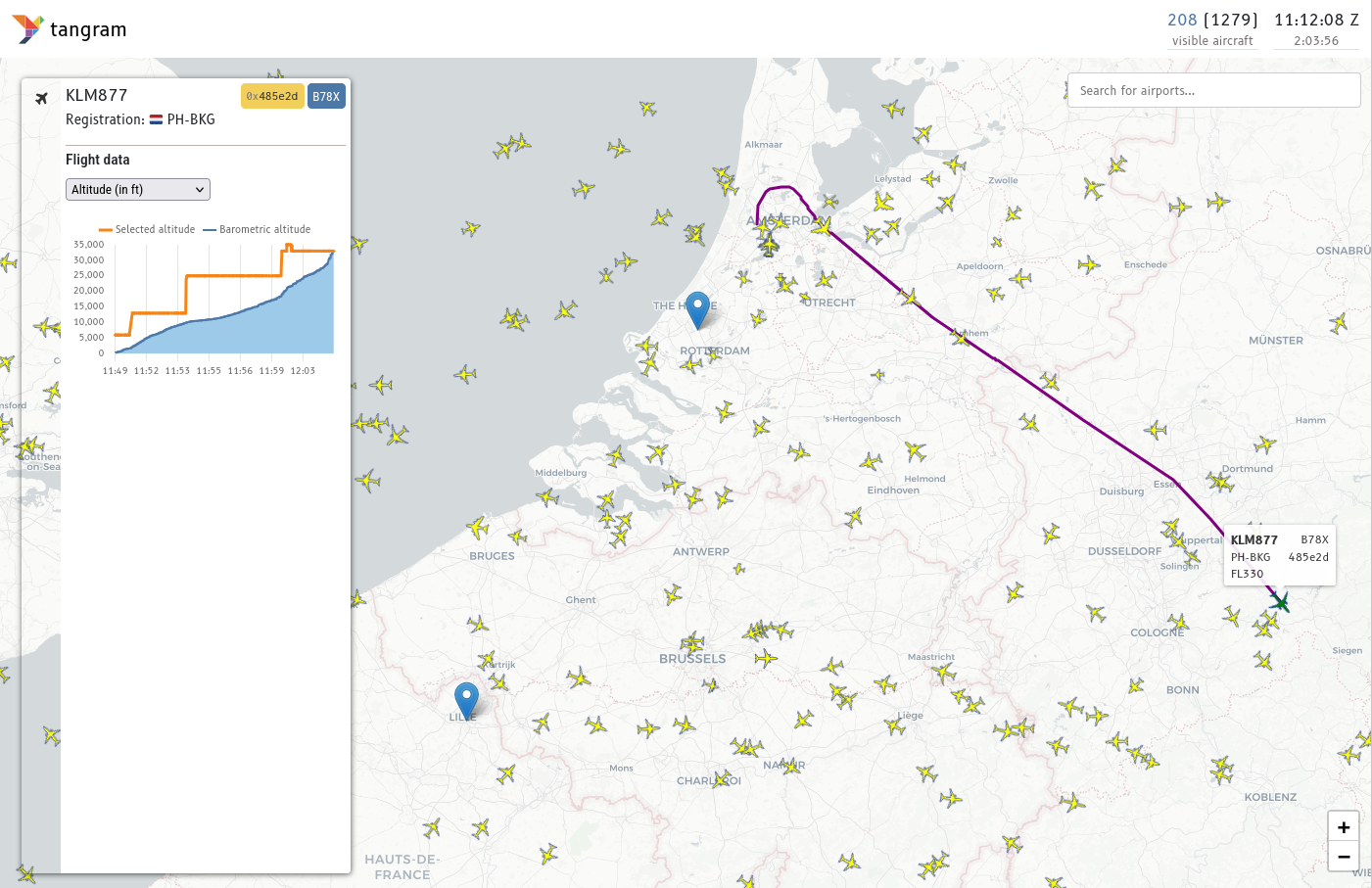

Open your browser and navigate to http://localhost:2345 to access the tangram web interface.

web interface

Troubleshooting

Issue Command
Check the logs for errors just tangram-log
Open a shell in the tangram container just tangram-shell
Ensure all containers are running podman container ls
Verify Redis connection podman container exec -it redis redis-cli ping
Kill a container if needed podman kill <container_name> (e.g. jet1090 or tangram)
